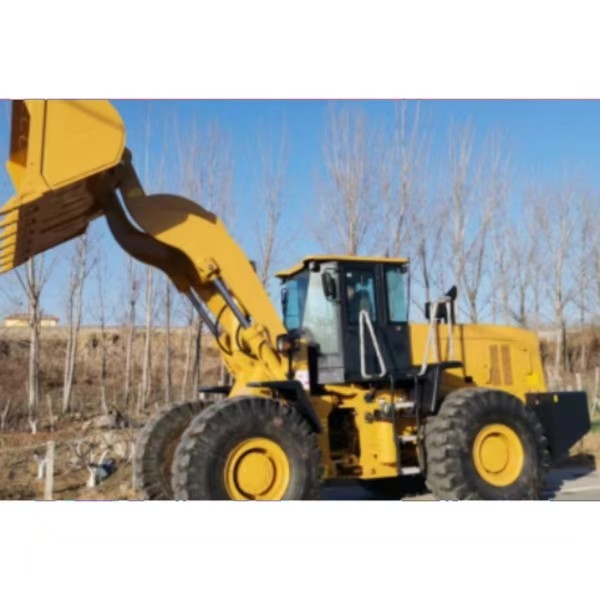

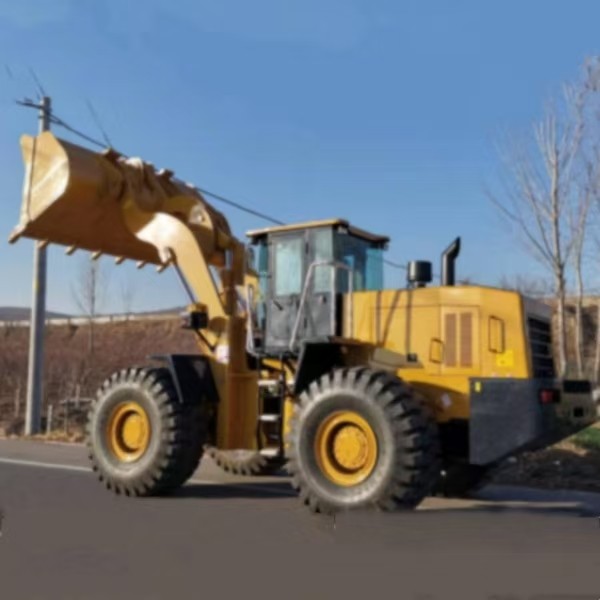

676G Wheel Loader
- Category： Wheel Loader
- Rated load: 7000kg
- Overall weight: 21000kg
- Bucket capacity: 4-10.2m³
- Engine: Weichai Steyr WP10G240E343
Main Performance Parameters of Wheel Loader 676G
| Performance | 1 | Rated load | 7000kg |
| 2 | Overall weight | 21000kg | |
| 3 | Bucket capacity | 4-10.2m³ | |
| 4 | Maximum tractive force | 187KN | |
| 5 | Maximum breakout force | ≥224KN | |
| 6 | Maximum grade ability | 30° | |
| 7 | Maximum dump height | 3207mm | |
| 8 | Maximum dump reach | 1481mm | |
| 9 | Overall dimension (L×W×H) | 8440×3075×3410mm | |
| 10 | Minimum turning radius | 6298mm | |
| Engine | 11 | Model | Weichai Steyr WP10G240E343 |
| 12 | Type | National III, inline 6-cylinder, four-stroke | |
| 13 | No.- of cylinder | 6 | |
| 14 | Rated power | 199kw | |
| 15 | Maximum torque | 1100N.m | |
| 16 | Min. fuel-consume ratio | ≤215g/kw.h | |
| Tyre | 17 | Type specification | 26.5-25 |
| 18 | Front tyre pressure | 0.4Mpa | |
| 19 | Rear tyre pressure | 0.35Mpa |
