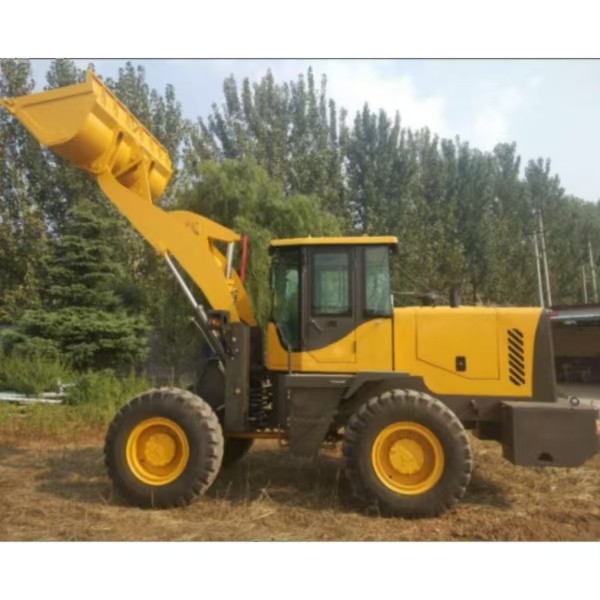

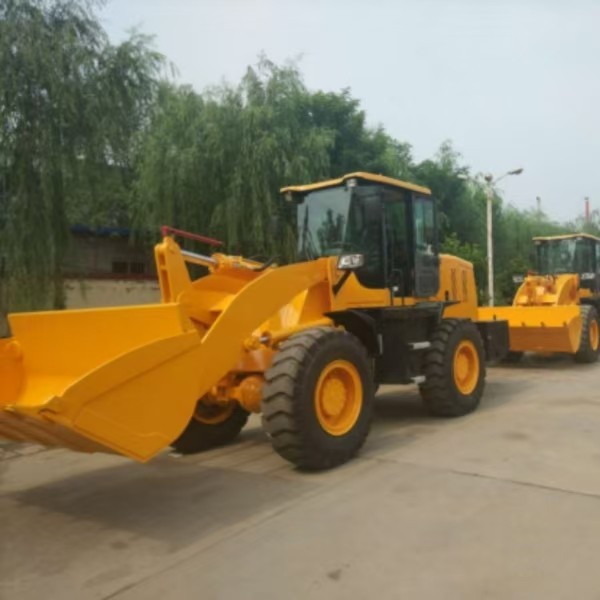

LQM630G Wheel Loader
- Category： Wheel Loader
- Rated load: 3000kg
- Overall weight: 9600kg
- Bucket capacity：1.53-2.5m³
- Engine: DEUTZ WP6G125E22
Main Performance Parameters of LQM630G Wheel Loader
| Performance | 1 | Rated load | 3000kg |
| 2 | Overall weight | 9600kg | |
| 3 | Bucket capacity | 1.53-2.5m³ | |
| 4 | Maximum traction force | 97KN | |
| 5 | Maximum breakout force | 120KN | |
| 6 | Maximum grade ability | 30℃ | |
| 7 | Maximum dump height | 3200mm | |
| 8 | Maximum dump reach | 1006mm | |
| 9 | Overall dimension (L×W×H) | 6890*2430*3070mm | |
| 10 | Minimum turning radius | 5097mm | |
| Engine | 11 | Model | DEUTZ WP6G125E22 |
| 12 | Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
| 13 | NO. of cylinder-bore*stroke | 6-108*125 | |
| 14 | Rated power | 92kw—2200r/min | |
| 15 | Maximum torque | 500N.m | |
| 16 | Min. fuel-consume ratio | ≦210Kw h | |
| Tyre | 17 | Type specification | 17.5-25 |
| 18 | Front tyre pressure | 0.4Mpa | |
| 19 | Rear tyre pressure | 0.35Mpa |
