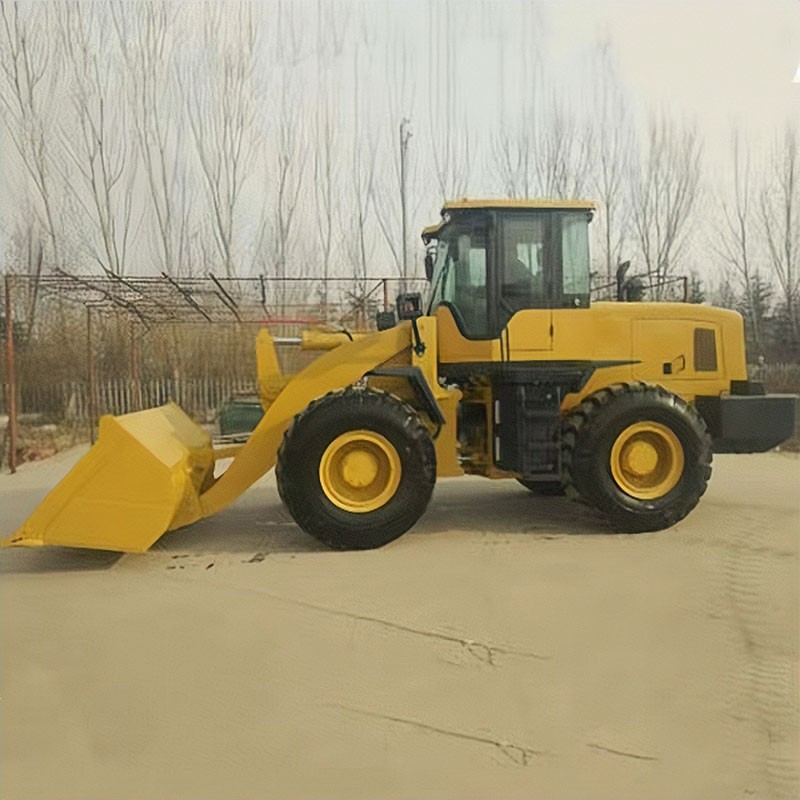

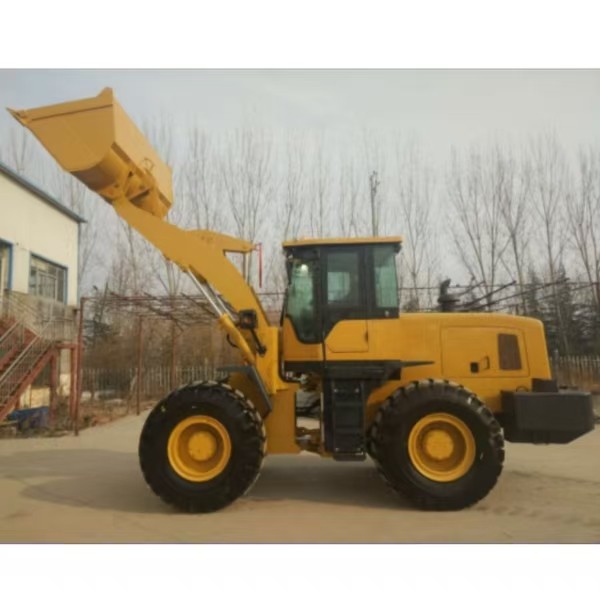

640G Wheel Loader
- Category： Wheel Loader
- Rated load: 4000kg
- Overall weight: 11000kg
- Bucket capacity: 2m³
- Engine：Weichai
Main Performance Parameters of 640G Wheel Loader
| Performance | 1 | Rated load | 4000kg |
| 2 | Overall weight | 11000kg | |
| 3 | Bucket capacity | 2m³ | |
| 4 | Maximum traction force | 95KN | |
| 5 | Maximum breakout force | 127KN | |
| 6 | Maximum grade ability | 30° | |
| 7 | Maximum dump height | 3200mm | |
| 8 | Maximum dump reach | 1260mm | |
| 9 | Overall dimension (L×W×H) | 7560*2440*3300mm | |
| 10 | Minimum turning radius | 5929mm | |
| 11 | Digging depth(minimum) | 150 mm | |
| 12 | Tipping load | 9860KG | |
| 13 | Max. angle of steering | 45° | |
| Engine | 14 | model | Weichai |
| 15 | Type | ||
| 16 | NO. of cylinder-bore*stroke | ||
| 17 | Rated power | 129kw—2000r/min | |
| 18 | Maximum torque | 640N.m | |
| 19 | Min. fuel-consume ratio | ≦210Kw h | |
| 20 | Emission standards | Euro Ⅱ | |
| Tyre | 21 | Type specification | 20.5-25 |
| 22 | Front tyre pressure | 0.4Mpa | |
| 23 | Rear tyre pressure | 0.35Mpa |
